Home Manual pallet truck

Manual pallet truck with electronic scale-Factory's latest hot-selling items

Manual pallet truck with electronic scale-Factory's latest hot-selling items

S20 Manual Pallet Truck, customizable wheels, battery capacity, and fork width. This series supports custom options: PU / nylon wheels, 4000mAh / 8000mAh battery, 685mm / 550mm fork width.

Key benefits: thickened and reinforced structure for accurate weighing; integrated casting oil cylinder, maintenance-free without oil leakage; LED large screen with adjustable brightness; ABS indicator, waterproof, dustproof and impact-resistant; multi-function weighing, counting, accumulation, tare; switchable weighing units (lb / kg).

Inquiry Now

Overview

The S20 Weighing Pallet Truck from LHW integrates high-precision weighing into daily pallet handling. Ideal for warehouses, logistics centers, and production lines, it eliminates the need to move loads to a separate scale – weigh while you lift and move


Key Features

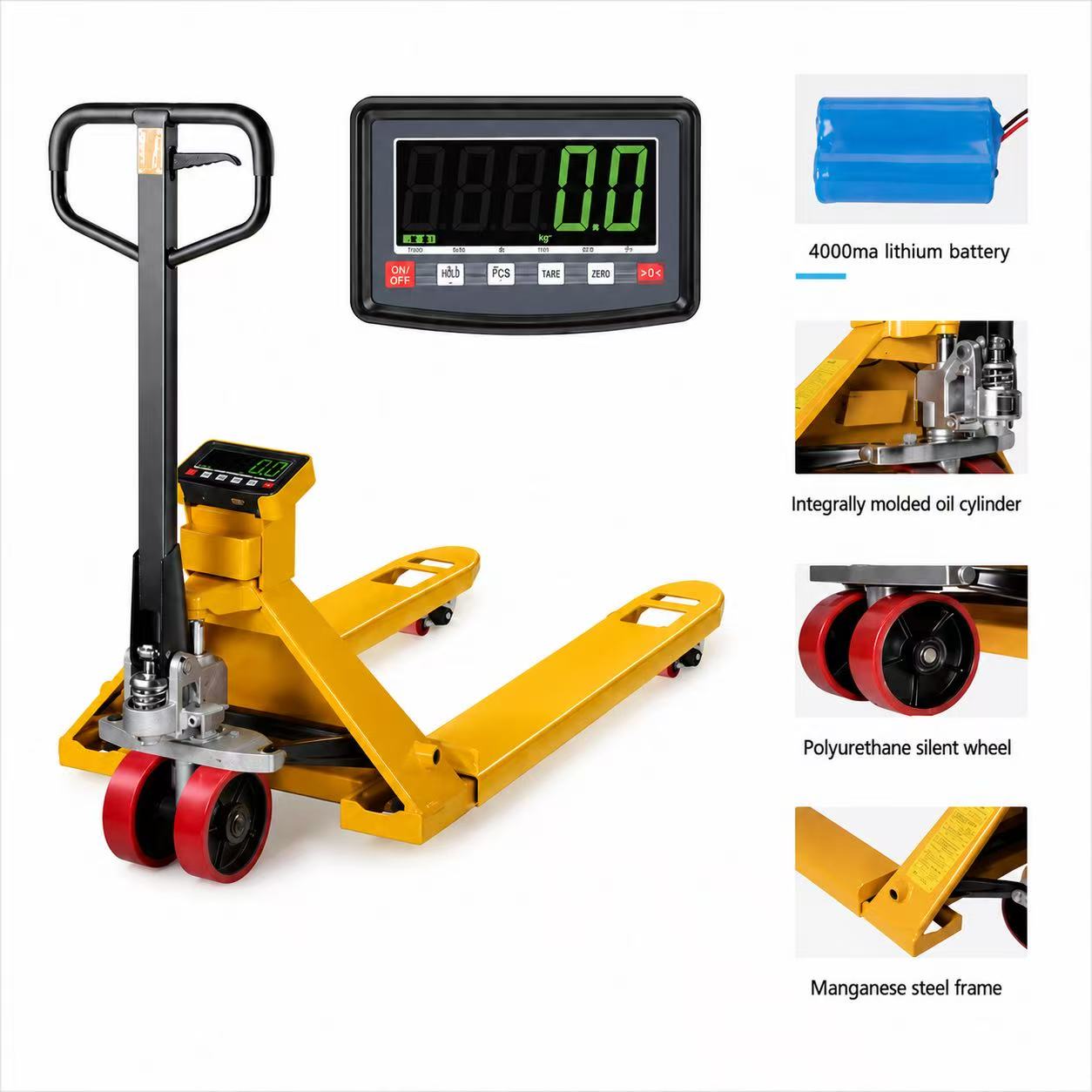

· Reinforced Structure – Thickened steel and high-strength manganese steel frame ensure durability and consistent weighing accuracy.

· Maintenance-Free Hydraulic Cylinder – One-piece cast oil cylinder, no oil leakage, no regular maintenance required.

· Large LED Display – High-definition screen with adjustable brightness, clear and easy to read even in poor lighting.

· Rugged Indicator Housing – Made of ABS material, waterproof, dustproof, and impact-resistant.

· Multi-Function Indicator – Supports weighing, counting, accumulation, and tare functions. Units switchable between lb and kg.

· Long-Life Battery – Standard 3.7V / 4000mAh lithium battery (optional 9V / 8000mAh available).

· Quiet Mobility – Default PU silent wheels or optional nylon wheels to suit different floor conditions.


Product Details

No. Parameter Name Specification
1 Weighing Range 2T / 3T
2 Division Value 0.1kg / 0.2kg / 0.5kg
3 Standard Battery 3.7V / 4000mA / 9V 8000mA (Optional)
4 Fork Width 685mm / 550mm
5 Fork Effective Length 1150mm
6 Vehicle Color Yellow
7 Ground Clearance Min. 85mm / Max. 200mm
8 Minimum Turning Radius 1370mm
9 Weighing Load Center 680mm
10 Vehicle Length 1570mm
11 Vehicle Mass 96KG (PU Wheel)

Quality & After‑Sales Support

  • CE, ISO 9001 certified

  • 12 months warranty (extendable)

  • Long‑term spare parts supply (10+ years)

  • Online technical support & on‑site service available

  • Free operator training documents
