• Lithium Battery Technology
Maintenance-free lithium battery ensures fast charging, longer lifespan, and reduced operating costs.
• Compact & Space-Saving Design
Small turning radius and compact body make it perfect for narrow aisles and confined warehouse environments.
• Ergonomic Operation
User-friendly handle design provides comfortable control and reduces operator fatigue.
• Durable & Heavy-Duty Structure
Reinforced frame and chassis ensure long-term durability and stable performance under load.
• Smooth & Stable Performance
Equipped with high-quality wheels and optimized weight distribution for smooth travel and lifting.
• Fast Lifting & Travel Efficiency
Optimized lifting and travel speeds improve overall working efficiency.
• Low Noise Operation
Quiet working environment with sound level ≤70 dB, suitable for indoor use.
• Safety & Control
Electromagnetic braking system ensures reliable stopping and enhanced safety.
• Easy Maintenance
Simple structure with maintenance-free battery reduces downtime and service costs.
| Parameter | Value |
|---|---|
| Rated capacity | 1500 kg |
| Load center distance | 600 mm |
| Overall length | 1648mm |
| Overall width | 550 / 685 mm |
| Fork dimensions (width/thickness/length) | 55 / 150 / 1150 mm |
| Lowered height | 85 mm |
| Lift height | 105 mm |
| Turning radius | 1393 mm |
| Aisle width for pallet 800x1200 mm | 2086mm |
| Travel speed (laden / unladen) | 4.2 / 4.5 km/h |
| Lifting speed (laden) | 0.02/0.023m/s |
| Lowering speed (laden) | 0.058/0.06m/s |
| Max gradeability (laden / unladen) | 6% / 10% |
| Drive motor power (S2 60 min) | 0.75 kW |
| Lift motor power (S3 15%) | 0.8 kW |
| Battery voltage / capacity (lithium) | 24V / 20Ah, 24V / 30Ah, or 24V / 40Ah |
| Service weight (including battery) | from 121 kg (depending on battery option) |
| Noise level | ≤70 dB(A) |
| Brake type | Electromagnetic |
Full specification sheet (including axle loads, tire details, etc.) available upon request.
Battery capacity upgrade (24V/30Ah, 24V/40Ah for extended runtime)
Fork width options (550mm or 685mm)
Polyurethane loading wheels for quieter operation
Custom color (corporate branding)
CE certified
12 months warranty (extendable)
Spare parts supply for 5+ years
Online technical support
User manual and operator training documents provided
Need a reliable electric pallet truck for narrow aisles? Tell us your battery preference (20/30/40Ah) and any custom requirements. We will reply within 24 hours.
📧 [Your email address]
📞 [Your WhatsApp / WeChat / Phone number]
1.5 Ton with Quick-Change Lithium Battery & Compact Turning Radius – Electric Pallet Truck Designed for narrow aisles. The CDB15J-Li4 features a small turning radius (1355mm) and short overall length (1550mm) for excellent maneuverability in tight spaces.
Read More

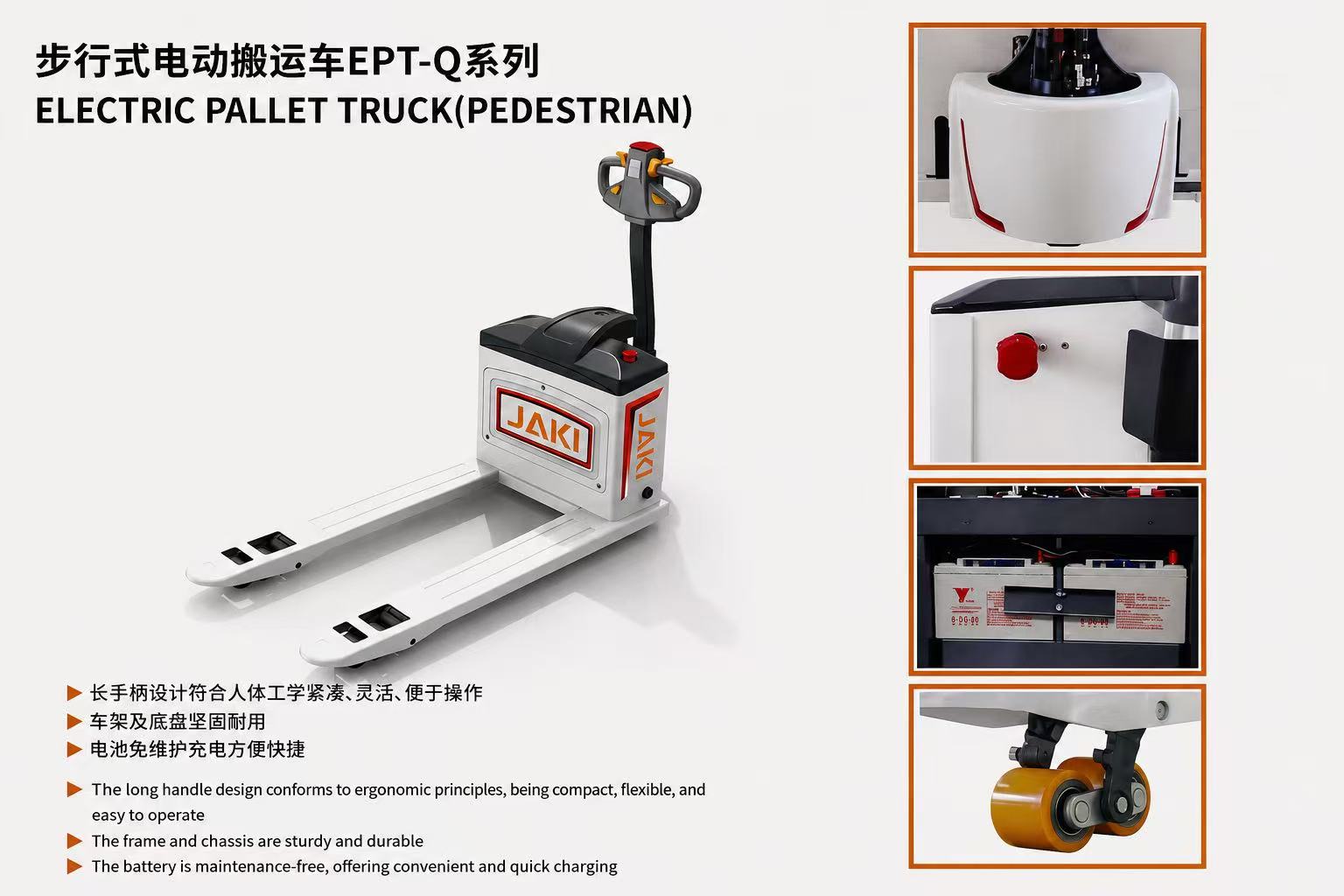

1.5 Ton with Quick-Change Lithium Battery & Compact Turning Radius – Electric Pallet Truck The EPT-Q Lithium Electric Pallet Truck is designed for efficient material handling in warehouse environments, with a 1.5-ton load capacity for daily operations. Its compact design and ergonomic handle ensure smooth maneuverability in narrow spaces. Equipped with a maintenance-free lithium battery, it delivers fast charging, low downtime, and reliable performance.
