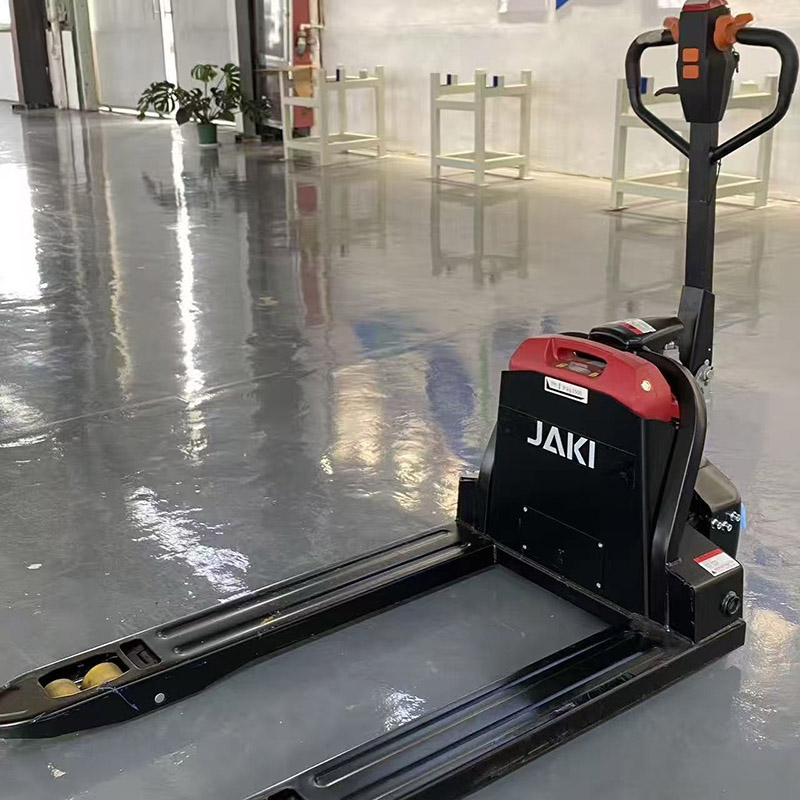

Designed for narrow aisles, busy warehouses, and distribution centers. The CDB15J-Li4 electric pallet truck combines a compact structure, small turning radius, and rapid battery swap capability to keep your operations running without downtime.
Quick‑disassembly lithium battery – Swap in seconds for continuous operation; supports long shifts without waiting for recharging.

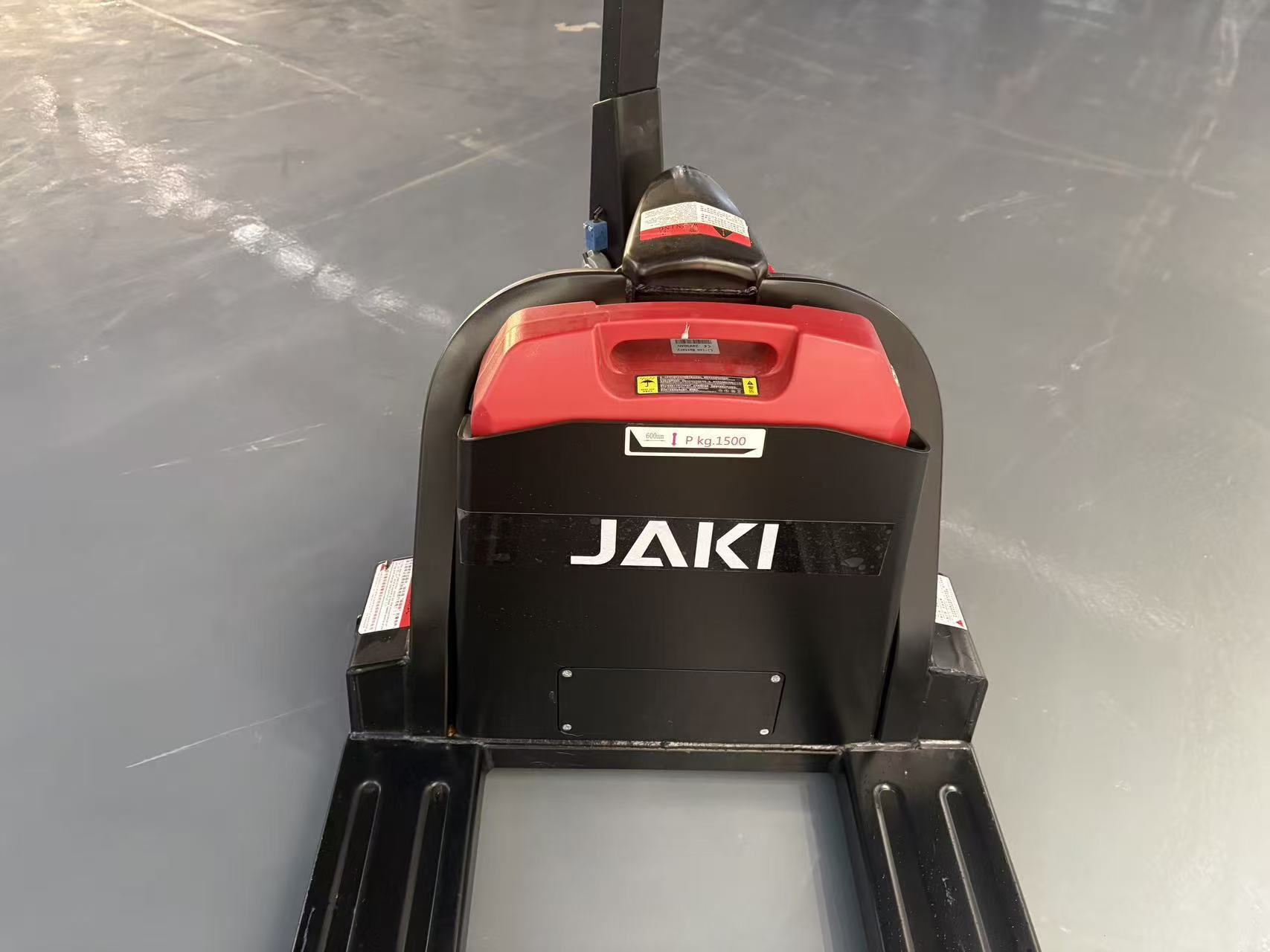

Rain‑proof cap‑style battery box – Protects the battery from rain and moisture, allowing outdoor or wet‑area use.

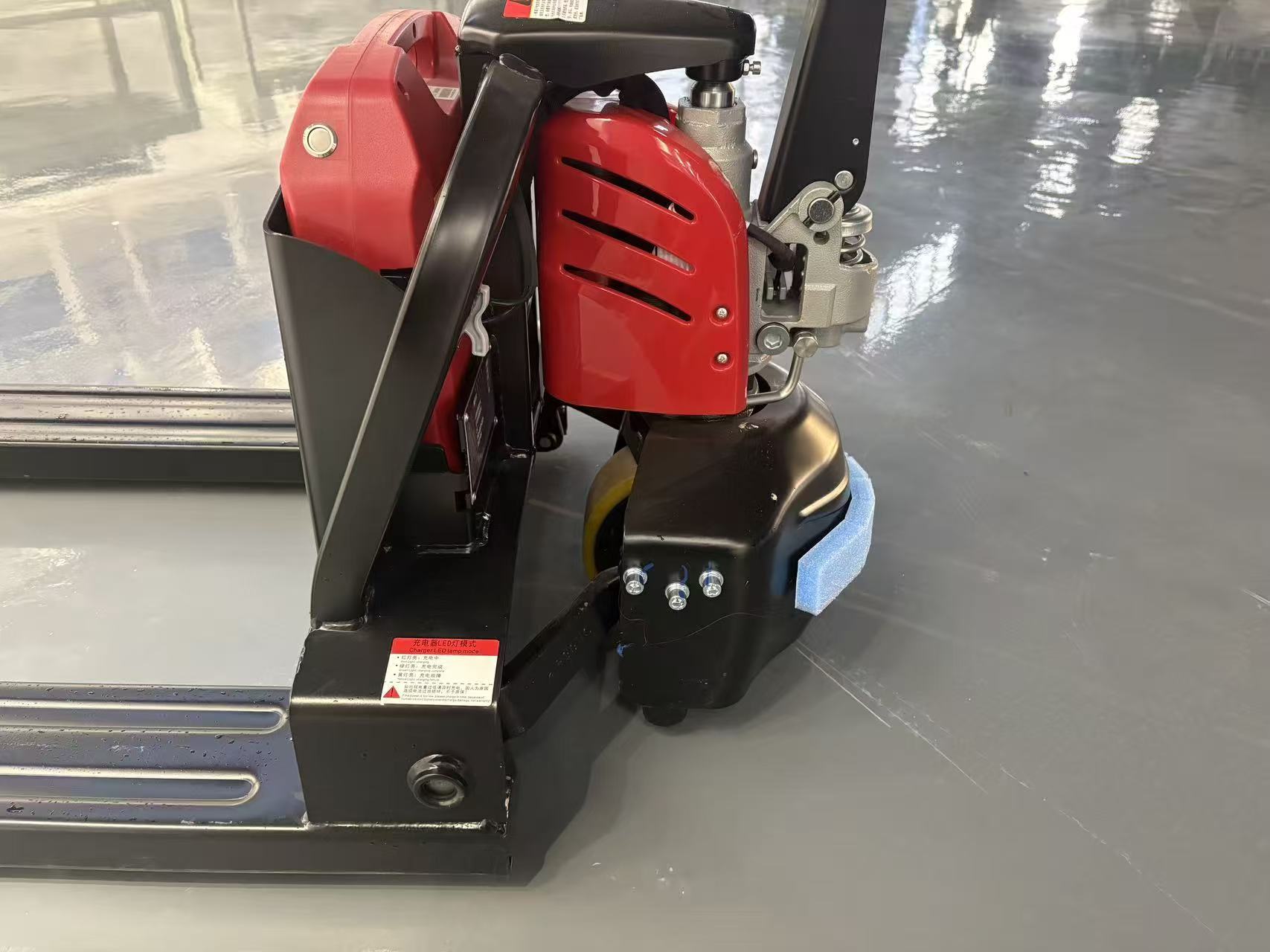

Outer‑ring cable routing – Prevents cable wear and breakage, reducing maintenance costs and unexpected failures.
Ultra‑compact design – Overall length only 1550mm, turning radius 1355mm – easily maneuver in tight spaces.
Low lowered height (85mm) – Fits under most standard pallets for smooth entry and exit.
| Parameter | Value |
|---|---|
| Rated capacity | 1500 kg |
| Load center distance | 600 mm |
| Operator type | Pedestrian (walking) |
| Overall length | 1550 mm |
| Overall width | 550 / 685 mm |
| Fork dimensions (width/thickness/length) | 55 / 150 / 1150 mm |
| Lowered height | 85 mm |
| Lift height | 200 mm |
| Turning radius | 1355 mm |
| Aisle width for pallet 800x1200 mm | 1810 mm |
| Travel speed (laden / unladen) | 4.2 / 4.5 km/h |
| Lifting speed (laden) | 0.018 m/s |
| Lowering speed (laden) | 0.049 m/s |
| Max gradeability (laden / unladen) | 6% / 15% |
| Drive motor power (S2 60 min) | 0.75 kW |
| Lift motor power (S3 15%) | 0.5 kW |
| Battery voltage / capacity (lithium) | 24V / 20Ah, 24V / 30Ah, or 24V / 40Ah |
| Service weight (including battery) | from 121 kg (depending on battery option) |
| Noise level | ≤70 dB(A) |
| Brake type | Electromagnetic |
Full specification sheet (including axle loads, tire details, etc.) available upon request.
Battery capacity upgrade (24V/30Ah, 24V/40Ah for extended runtime)
Fork width options (550mm or 685mm)

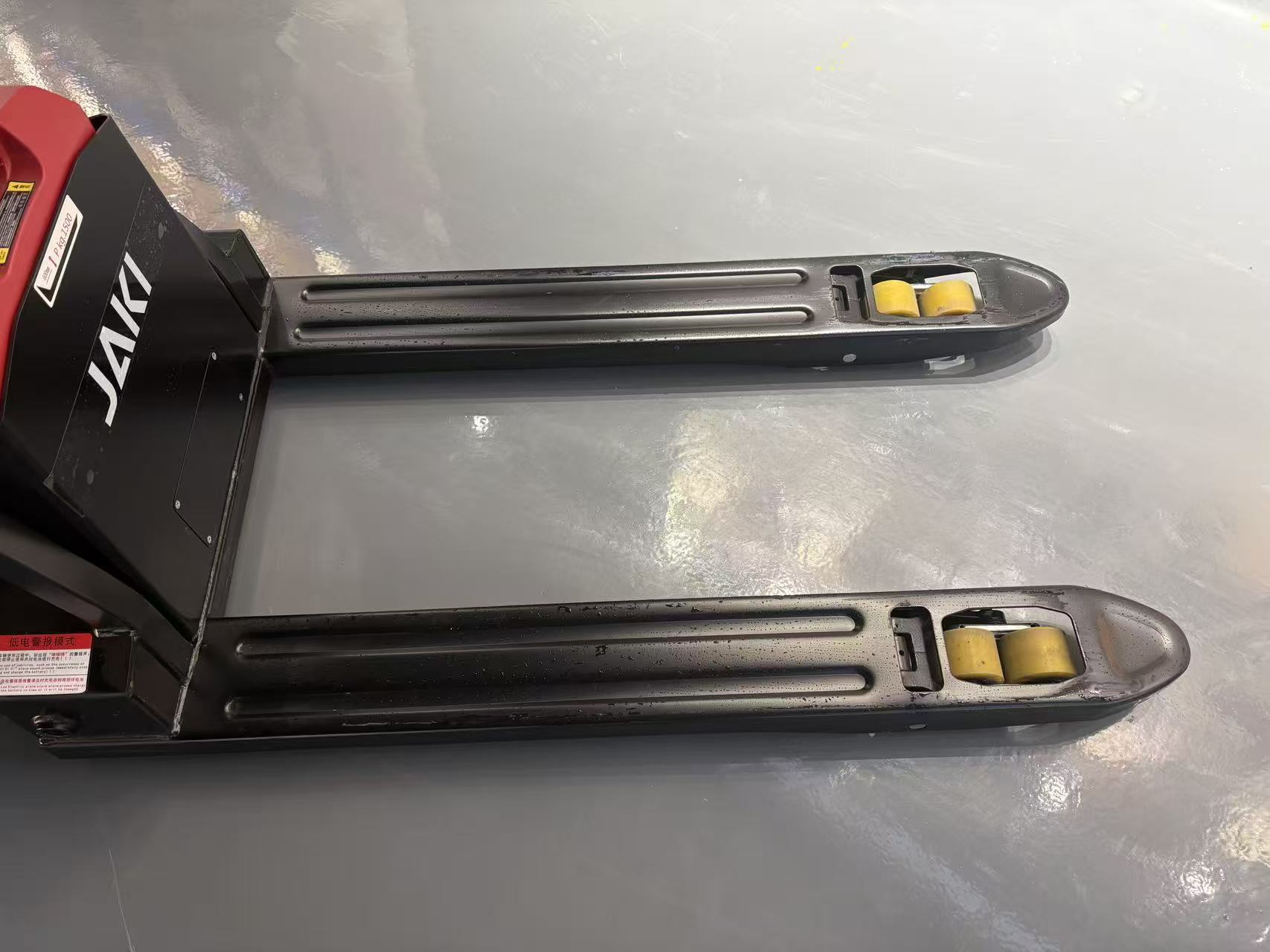

Polyurethane loading wheels for quieter operation
Custom color (corporate branding)
CE certified
12 months warranty (extendable)
Spare parts supply for 5+ years
Online technical support
User manual and operator training documents provided
Need a reliable electric pallet truck for narrow aisles? Tell us your battery preference (20/30/40Ah) and any custom requirements. We will reply within 24 hours.
