Ideal for heavy-duty outdoor operations, construction sites, ports, and large warehouses. The Nebula K3 series diesel forklift combines robust engineering with low-maintenance hydraulic design, ensuring reliable performance in demanding environments.
Monolithic Cast Bridge + Semi‑shaft Oil Seal – Exceptional strength, significantly reduced leakage risk.
Electric Pattern Tires – Low rolling resistance for extended endurance and fuel efficiency.
Large Side‑mounted Hydraulic Oil Tank – Superior heat dissipation, suitable for continuous heavy use.
24° Cone Sealing Piping System – Minimizes hydraulic oil leaks, lowers maintenance frequency.
High‑mounted Swivel Stivel Steering Bridge with Tapered Bearings – Excellent lateral stability and long service life.

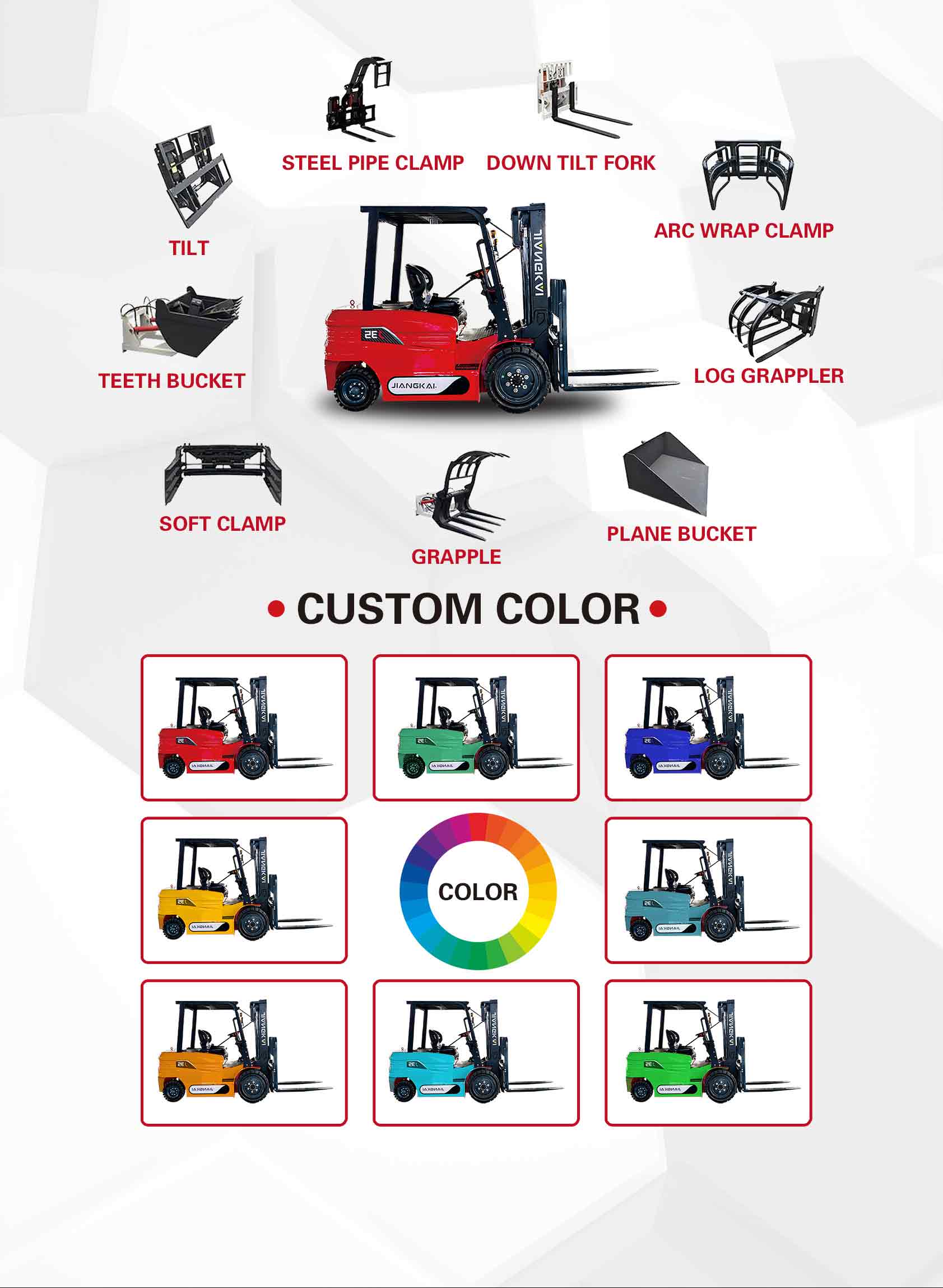

Color – Any RAL code or corporate color.
Lift Height – Standard 3000mm, customizable up to 6000mm (3m, 4m, 5m, 6m).
Attachments – Soft clamp, paper roll clamp, side shifter, fork positioner, rotator, log grapple, etc.

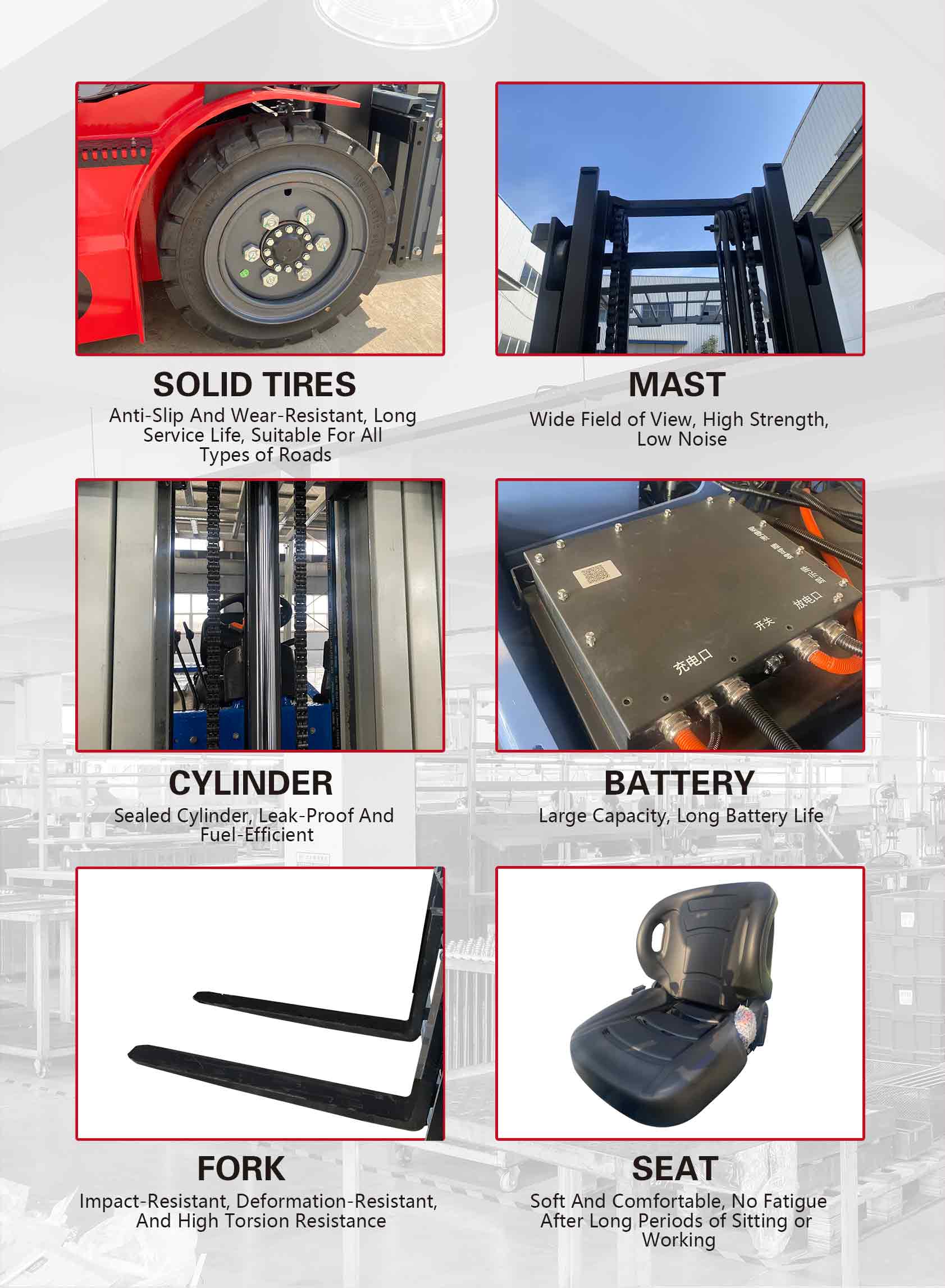

Tires – Pneumatic / solid options.
Mast – Wide-view mast, 2‑stage or 3‑stage full free lift mast.
| Parameter | Value |
|---|---|
| Rated capacity | 3500 kg |
| Load center | 500 mm |
| Power type | Diesel |
| Standard lift height | 3000 mm |
| Free lift height | 160 mm |
| Mast height (standard, lowered) | 2070 mm |
| Overall length (with fork) | 3886 mm |
| Overall length (without fork) | 2798 mm |
| Overall width | 1225 mm |
| Overall height (with overhead guard) | 2140 mm |
| Wheelbase | 1750 mm |
| Outside turning radius | 2400 mm |
| Travel speed (loaded / unloaded) | 19 / 19 km/h |
| Lift speed (loaded) | 400 mm/s |
| Lowering speed (loaded) | 450 mm/s |
| Max traction (loaded / unloaded) | 19 / 16 kN |
| Max gradient (loaded / unloaded) | 31% / 23% |
| Engine power | 50 kW @ 2500 rpm |
| Fuel tank capacity | 70 L |
| Tire size – front | 28×9-15-14PR |
| Tire size – rear | 6.5-10-10PR |
| Service weight (gross) | 4600 kg |
Full detailed specification sheet (including axle loads, mast tilt angles, fork dimensions, etc.) available upon request.
Soft clamp / Paper roll clamp / Side shifter
Log grapple / Steel pipe clamp / Down tilt fork
Wide-view mast with LED working lights
Rear camera / rear‑view mirror / strobe warning light
Comfort suspension seat
High‑air intake for dusty environments
CE, ISO 9001 certified
12 months warranty (extendable)
Long‑term spare parts supply (10+ years)
Online technical support & on‑site service available
Free operator training documents
3.5 Ton Diesel Forkliftt | Custom Color, Lift Height & Attachments This 2-5 ton diesel forklift series supports custom color (corporate branding), custom lift height (3000~6000mm), and custom attachments (soft clamp, paper roll clamp, side shifter, etc.). Key advantages: monolithic cast bridge + semi-shaft oil seal – high strength, low leakage; electric tread tires – low rolling resistance, longer endurance; large side-mounted hydraulic tank – superior heat dissipation; 24° cone sealing piping – minimizes hydraulic leaks; high-mounted swivel steering bridge – excellent stability & long service life. Optional: wide-view mast, solid tires, comfortable seat, sealed cylinders. Durable, efficient, and fully customizable – one forklift for multiple tasks. Contact us to build your own.
