Dual-Lift Efficiency——Handle lifting and stacking simultaneously to maximize workflow efficiency.
Heavy-Duty Performance——Rated load capacity up to 1500KG, suitable for demanding warehouse tasks.
Compact & Agile Design——Small turning radius allows smooth operation in tight spaces and narrow aisles.
Durable Construction——High-strength forks and robust structure ensure long-term durability.
Smooth & Stable Movement——Wear-resistant wheels provide stable and quiet operation on various surfaces.
User-Friendly Operation——Ergonomic handle design for easy control and enhanced safety.
| Item | Specification |
|---|---|
| Key Features | 1500KG Load | 2.9m Lift | Dual Lift | Compact Design |
| Rated Load | 1500 kg |
| Load Center | 500 mm |
| Max Lift Height | 2910 mm |
| Travel Speed | 4 / 4.5 km/h |
| Gradeability | 3% / 7% |
| Overall Length | 1790 mm |
| Overall Width | 800 mm |
| Turning Radius | 1600 mm |
| Fork Size | 1150 × 560 mm |
| Lift Type | Dual Lift |
| Lift Speed | 0.09 / 0.1 m/s |
| Lowering Speed | 0.1 / 0.09 m/s |
| Mast Height (Lowered) | 2015 mm |
| Mast Height (Extended) | 3490 mm |
| Drive Motor | 0.75 kW |
| Lift Motor | 2.2 kW |
| Battery | 24V / 80Ah |
| Battery Weight | 2 × 25 kg |
| Brake System | Electromagnetic |
| Noise Level | 69 dB |
Cost-Effective – High performance at a budget-friendly price.
Narrow-Aisle Ready – Minimal turning radius allows easy operation in confined spaces.
Flexible Lifting Height – From 1.5m to nearly 4m, compatible with most racking systems.
Robust & Safe – Sturdy construction meets CE safety standards (certified).
Easy to Maintain – Simple structure with widely available spare parts.
Small logistics distribution centers
Manufacturing workshops (finished goods / semi-finished goods)
Supermarket / retail backrooms
Any warehouse needing economical stacking solutions
JAKI's economical long-handle stacker truck has a rated load capacity of 1500kg and a lifting height of 1510–3910mm. Its compact design makes it economical and practical. Its turning radius is smaller than traditional stacker trucks, offering flexible handling and making it particularly suitable for small warehouses and narrow aisle stacking operations. The truck's robust structure and easy operation significantly improve warehouse space utilization and operational efficiency. We provide you with a cost-effective, reliable, and durable stacking solution.
Read More

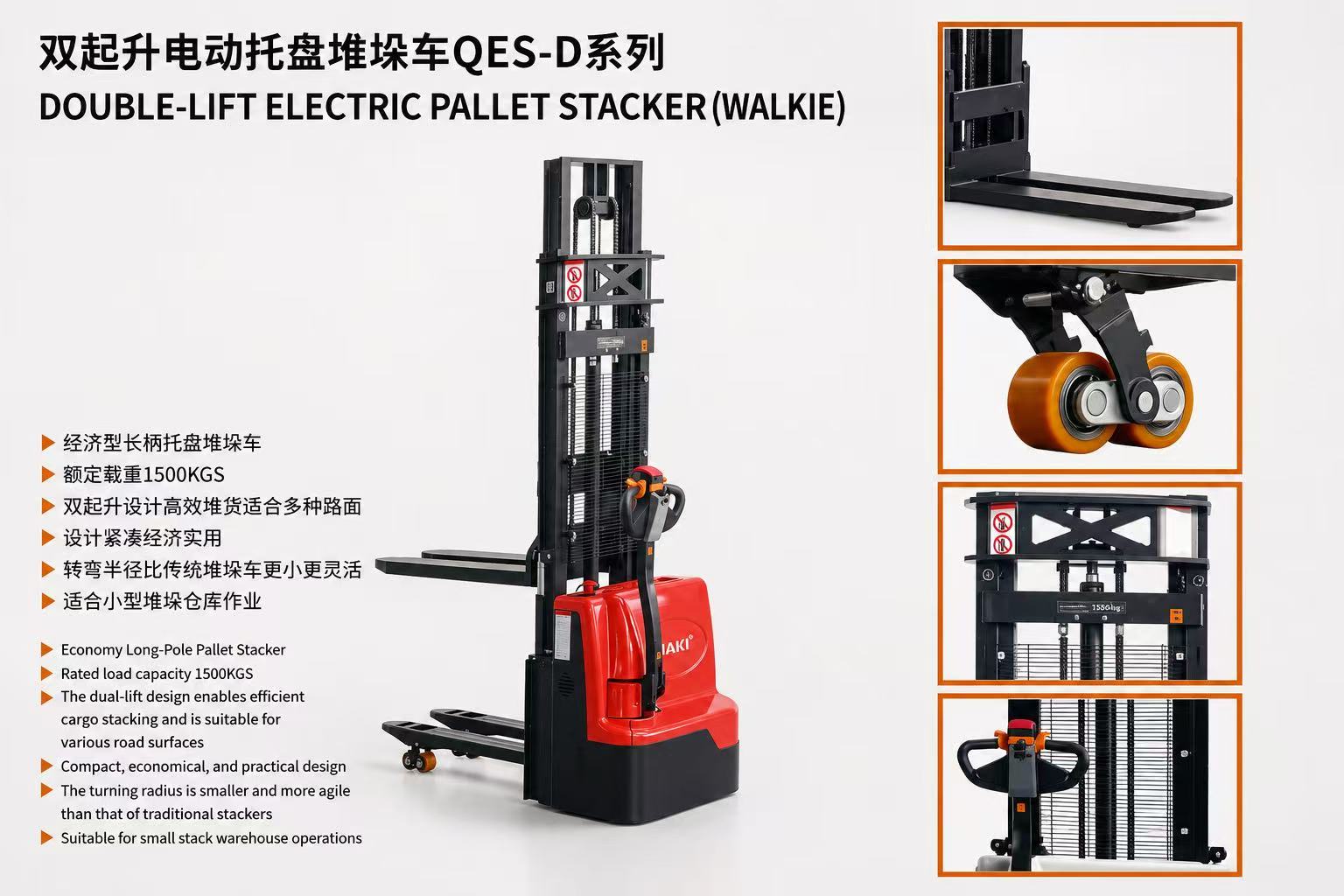

The QES-D Double Lift Electric Pallet Stacker is designed for efficient material handling and stacking in modern warehouses.With a 1500KG load capacity and dual-lift system, it significantly improves operational efficiency.Its compact structure and small turning radius make it ideal for narrow aisles and small warehouse environments.
Read More
The JAKI QES-M Series Electric Stacker is a compact pedestrian pallet stacking solution designed for warehouses, factories, and logistics operations. With a 1500kg rated load capacity, 3410mm maximum lifting height, and reliable electric drive system, it delivers efficient pallet handling, stacking, and transportation performance in confined spaces.
